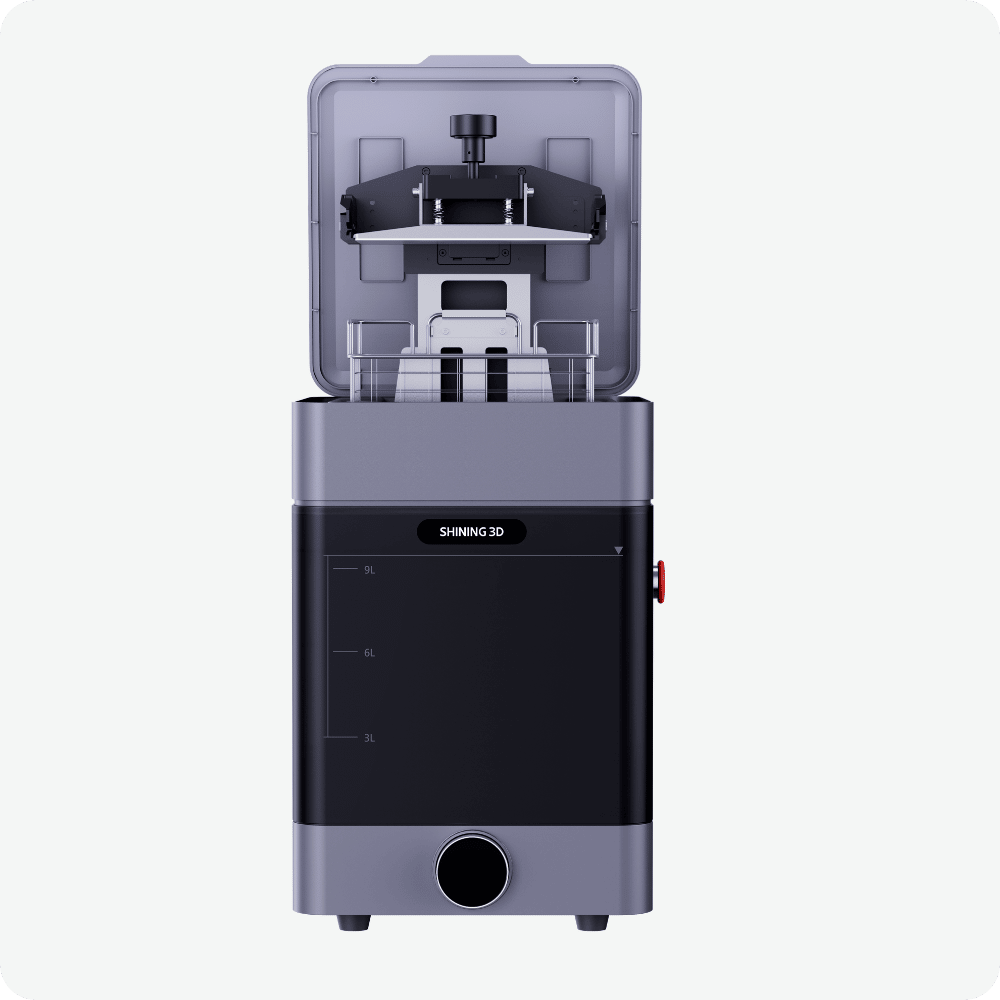

SHINING 3D FabWash Automated Post-Processing Unit
The SHINING 3D FabWash is an automated post-processing unit designed to simplify dental resin 3D printing workflows. Built to handle part release, washing, and drying in one streamlined process, FabWash helps labs and clinics reduce manual work, improve consistency, and keep post-processing cleaner and more efficient.
With automated part release, pre-programmed wash and dry settings, Wi-Fi connectivity, compatible solvent support, and built-in safety sensors, FabWash helps create a smoother workflow from printed part to final curing preparation.
Description
Automated Post-Processing for Dental 3D Printing
FabWash is designed to automate the key steps after resin printing, including part release, washing, and drying. By reducing manual handling, it helps protect delicate printed parts and supports a more consistent post-processing workflow.
Thorough Cleaning Performance
A magnetically coupled impeller provides strong, even agitation to help clean printed parts effectively. FabWash can be used with compatible cleaning solvents, including IPA, water, and alcohol solutions above 75%, depending on material requirements.
Compatible SHINING 3D Workflow
FabWash is built to work with SHINING 3D AccuFab dental printers, including AccuFab-D1s, AccuFab-L4D/L4K, AccuFab-CEL, and AccuFab-F1. Some printer platforms may require an adapter for proper compatibility.
Smart Programs and Custom Profiles
Pre-programmed material workflows help remove guesswork from washing and drying settings. Users can also save custom wash and dry profiles for frequently used materials, while Wi-Fi connectivity supports updates for firmware and material libraries.
Easy Operation and Safety Features
FabWash is designed for simple daily use in busy labs and clinics. Safety features include automatic start/stop sensors, build platform detection, solvent bucket detection, a safety pressure sensor, and an emergency stop switch.
Technical Specifications
| Specification | FabWash |
|---|---|
| Product Type | Automated Post-Processing Unit |
| Printer Compatibility | AccuFab-D1s, AccuFab-L4D/L4K, AccuFab-CEL, AccuFab-F1 |
| Product Weight | 15 kg / 33.1 lb |
| Dimensions | 34 × 30.3 × 45 cm |
| Dimensions in Inches | 13.39 × 11.93 × 17.72 in |
| Height When Open | 75 cm / 29.53 in |
| Maximum Part Size | 199 × 124 × 180 mm |
| Maximum Part Size in Inches | 7.83 × 4.88 × 7.09 in |
| Suggested Operating Environment | 10°C–30°C / 30%–70% RH |
| Agitation Method | Magnetically coupled impeller |
| Compatible Solvent | >75% alcohol, IPA, water |
| Connectivity | Wi-Fi |
| Power Requirements | 100–240 V / 2.0 A, 50/60 Hz; 24 V / 150 W |
| Included Accessories | Wash bucket, wash basket, scraper, brush, adapter, quick guide |
| Safety Sensors | Automatic start/stop sensors, build platform detection, solvent bucket detection, safety pressure sensor, emergency stop switch |
| Product Features | Automatic part release, predefined wash/dry programs, user-programmable wash/dry option |
Setup and Post-Processing Preparations
Place FabWash on a stable, clean, and level work surface near the printer and curing unit. Use it in a well-ventilated area and follow all resin and solvent handling instructions for the materials being processed. At least 3 L of compatible solvent is required for operation.
Recommended supplies include:
- Nitrile gloves
- Paper towels
- Approved cleaning solvent, such as IPA or >75% alcohol, depending on material requirements
- Fresh solvent for transparent materials when needed
- Compatible curing unit for final post-curing after washing and drying
