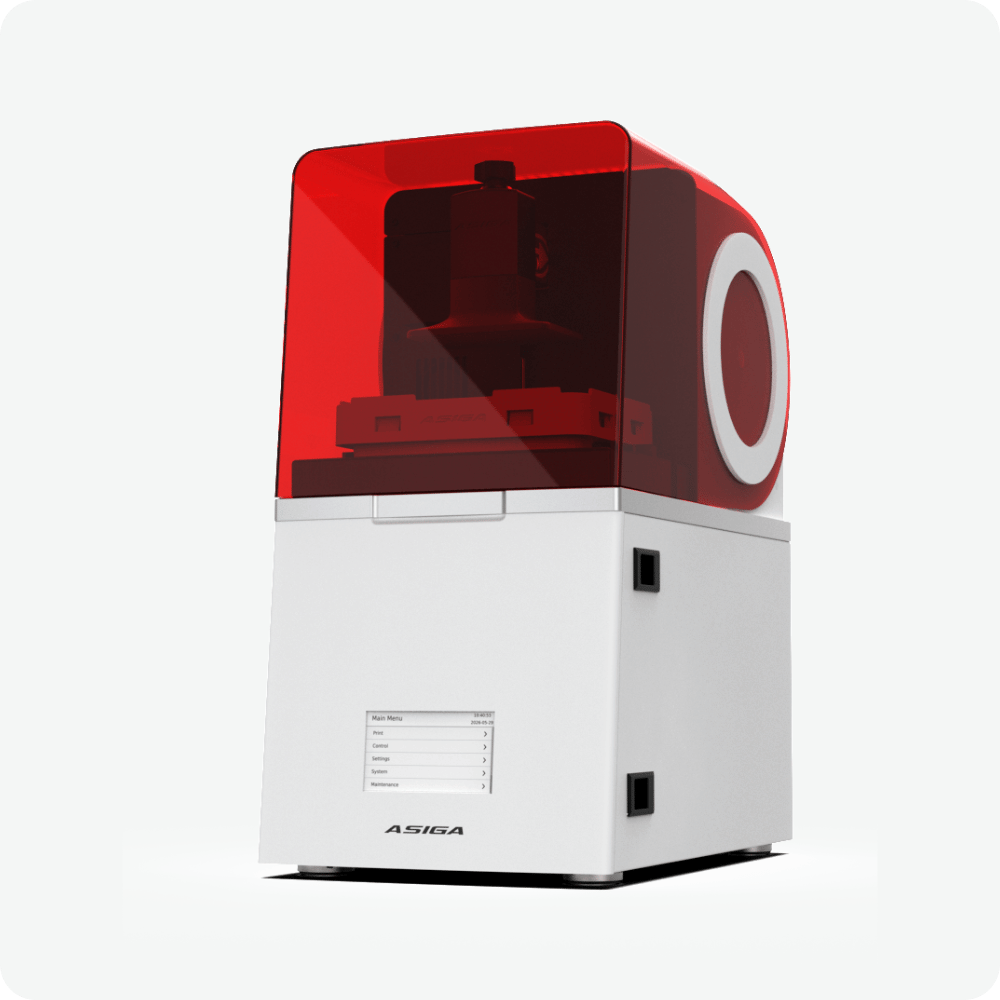

The Asiga MAX X Plus is a precision resin 3D printer built for users who need fine detail, reliable repeatability, and advanced material flexibility. Designed for professional production environments, it supports applications across dental, jewelry, medical, industrial, microfluidic, miniatures, and other high-detail workflows.
With three resolution options — MAX X27 Plus, MAX X35 Plus, and MAX X43 Plus — users can choose the balance of pixel size and build area that best fits their workflow. The MAX X Plus also includes Asiga’s Smart Positioning System, DLP imaging technology, Transparent Mode on 385 nm models, onboard material heating, and Composer software for efficient build preparation.
Description
Precision Resin Printing for Professional Applications
The Asiga MAX X Plus is made for workflows where accuracy and surface detail matter. With 27 µm, 35 µm, and 43 µm pixel options, it gives users the ability to match the printer configuration to their application, whether the priority is ultra-fine detail, larger build area, or balanced daily production.
Layer Control and Print Consistency
Asiga’s Smart Positioning System monitors and controls layer thickness during printing to help maintain consistent accuracy. This active layer control supports reliable print results and helps reduce variation across detailed or complex parts.
DLP Imaging and Calibrated UV Output
The MAX X Plus uses DLP micromirror technology for precise image projection and dependable curing performance. Its auto-calibrating UV LED system is designed to maintain consistent light output over time, supporting stable production results across long-term use.
Clear Material Printing with Transparent Mode
Transparent Mode is available on 385 nm MAX X Plus printers and helps improve results when printing clear and water-clear materials. This feature is useful for applications that require transparency, fine geometry, or optical clarity.
Open Material Architecture
The MAX X Plus supports Asiga materials as well as suitable third-party resins through Asiga’s open material system. With access to a broad material library, users can adapt the printer to many applications without being locked into a limited material platform.
Heated Print Environment
Onboard material heating allows users to adjust the print chamber temperature for material-specific requirements. Heating can help reduce resin viscosity and improve handling for materials that benefit from a controlled printing environment.
Composer Software Included
Asiga Composer software is included for print preparation, nesting, and build setup. It supports Windows, macOS, and Linux, with lifetime updates included to help keep the workflow current.
Technical Specifications
| Specification | MAX X27 Plus | MAX X35 Plus | MAX X43 Plus |
|---|---|---|---|
| Product Type | Professional Resin 3D Printer | Professional Resin 3D Printer | Professional Resin 3D Printer |
| Technology | DLP | DLP | DLP |
| Pixel Resolution | 27 µm | 35 µm | 43 µm |
| Build Volume | 51.8 × 29.2 × 75 mm | 67.2 × 37.8 × 75 mm | 82.3 × 46.4 × 75 mm |
| Build Volume in Inches | 2.04 × 1.15 × 2.95 in | 2.65 × 1.49 × 2.95 in | 3.24 × 1.83 × 2.95 in |
| LED Wavelength | 385 nm high-power UV LED or 405 nm | 385 nm high-power UV LED or 405 nm | 385 nm high-power UV LED or 405 nm |
| Transparent Mode™ | Available on 385 nm printers only | Available on 385 nm printers only | Available on 385 nm printers only |
| Material Compatibility | Asiga materials and open third-party material system | Asiga materials and open third-party material system | Asiga materials and open third-party material system |
| Software | Asiga Composer, lifetime updates included | Asiga Composer, lifetime updates included | Asiga Composer, lifetime updates included |
| File Inputs | STL, SLC, PLY, STM | STL, SLC, PLY, STM | STL, SLC, PLY, STM |
| Network Compatibility | Wi-Fi / Wireless Direct / Ethernet | Wi-Fi / Wireless Direct / Ethernet | Wi-Fi / Wireless Direct / Ethernet |
| Power Requirements | 100–240 VAC, 50/60 Hz, ≤2 A | 100–240 VAC, 50/60 Hz, ≤2 A | 100–240 VAC, 50/60 Hz, ≤2 A |
| System Size | 260 × 400 × 510 mm | 260 × 400 × 510 mm | 260 × 400 × 510 mm |
| System Size in Inches | 10.2 × 15.7 × 20 in | 10.2 × 15.7 × 20 in | 10.2 × 15.7 × 20 in |
| System Weight | 21.5 kg / 47.4 lb | 21.5 kg / 47.4 lb | 21.5 kg / 47.4 lb |
| Packed Size | 400 × 510 × 630 mm | 400 × 510 × 630 mm | 400 × 510 × 630 mm |
| Packed Size in Inches | 15.7 × 20 × 24.8 in | 15.7 × 20 × 24.8 in | 15.7 × 20 × 24.8 in |
| Packed Weight | 23.5 kg / 51.8 lb | 23.5 kg / 51.8 lb | 23.5 kg / 51.8 lb |
| Warranty | 12-month manufacturer’s warranty | 12-month manufacturer’s warranty | 12-month manufacturer’s warranty |
| Technical Support | Unlimited lifetime technical support included | Unlimited lifetime technical support included | Unlimited lifetime technical support included |
What’s Included
- Asiga MAX X Plus printer
- Composer software
- 1 kg Asiga material
- 1 L build tray
- Asiga Flash post-curing chamber
- Calibration toolkit
- Unlimited lifetime technical support
Setup and Post-Processing Preparations
Place the MAX X Plus on a clean, level, and stable work surface in a controlled production area. Resin trays and materials should be handled according to the material manufacturer’s instructions. Printed parts should be properly washed, dried, and post-cured before final use.
Recommended supplies include:
- Nitrile gloves
- Paper towels
- Approved resin cleaning solvent or IPA
- Compatible washing equipment
- Clean drying area
- Included Asiga Flash curing chamber or compatible curing unit
